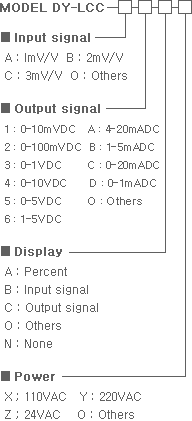

Construction
: plug-in
Housing materiel :
plastic (black)
Wiring : screw terminals
on base socket
Isolation : input
to output to power |
|
 |
|
Accuracy
: 0.2%
Temp. coefficient
: 0.02% / ℃
Insulation resistance
: 100Mohm with 500VDC
Response time : 0.5
seconds or less (0~90%)
Dielectric strength
: 1500VAC at Iminute
(in
to out to power) |
|
 |
|
Operating
temperature : -5℃
to +55℃
Operating humidty
: 90% RHmax (non-condensing)
Mounting : wall or
DIN rall
Power supply : AC
rating (100-240V)
50/60㎐, 3 |
|
 |
|
| ■

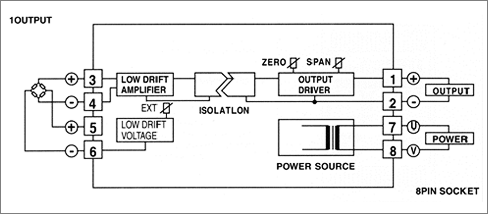

INPUT |
Input
: bridge voltage from
load cell
Strain gauge : rating
3mV/V standard and
others
Excitation : 12VDC
standard and others
Permissible current
: 12V / 35mA. max. |
|
| ■
OUTPUT
|
DC
current : 0~20mADC
Minimum span : 1mADC |
|
| OUTPUT |
LOAD RESISTANCE |
IMPEDANCE |
| 4-20mA |
0-750ohm |
5Mohm
or more |
| 1-50mA |
0-3000ohm |
| 0-20mA |
0-750ohm |
| 0-1mA |
0-15ohm |
|
|
DC
voltage : ± 15VDC
Minimum span : 5mVDC |
|
| OUTPUT |
LOAD RESISTANCE |
IMPEDANCE |
| 0-10mV |
10kohm or
more |
10ohm or less |
| 0-10mV |
100kohm or
more |
100ohm or
less |
| 0-1V |
100ohm or
more |
0.1ohm
or less |
| 0-10V |
1kohm or more
|
| 1-5V |
500ohm or
more |
| 0-5V |
500ohm or
more |
|
