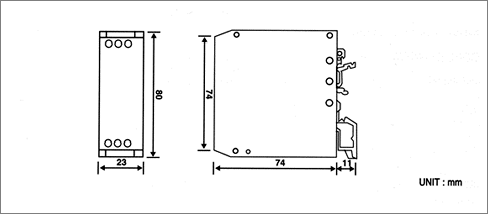

Construction
: DIN rall standard
rack mounting
type
Housing materiel :
plastic
Wiring : screw teminals |
|
 |
|
Accuracy
: 0.25%
Temp. coefficient
: 0.02% / ℃
Insulation resistance
: 100Mohm with 500VDC
Response time : 0.5
seconds or less (0~90%) |
|
 |
|
Operating
temperature : -5℃
to +55℃
Operating humidty
: 90% RHmax (non-condensing)
Mounting : DIN rall
type
Power supply : 18-30V
DC |
|
 |
|
| ■

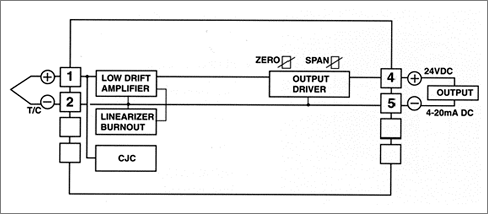

INPUT |
| Thermocouples
: standard span 10mV
DC or more |
|
| MINIMUM
SPAN REQUIREMENT |
| R |
962C |
E |
153C |
| S |
1036C |
J |
186C |
| K |
247C |
T |
214C |
| OTHERS
: CONSULT FACTORY
OR REPRESENTATIVES |
|
|
| ■
OUTPUT
|
|
DC
Current : 4-20mA DC
Load resistance :
750ohm |
